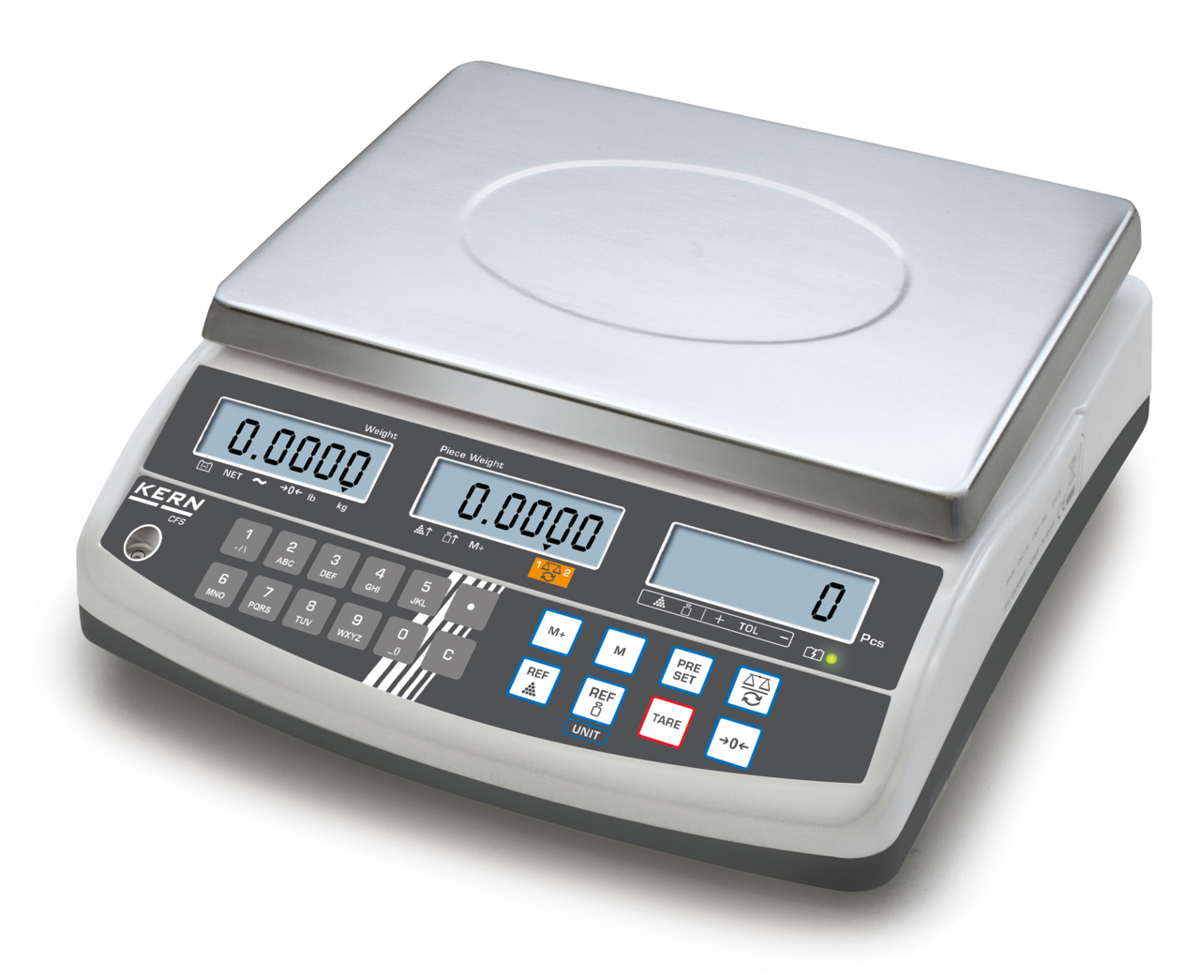

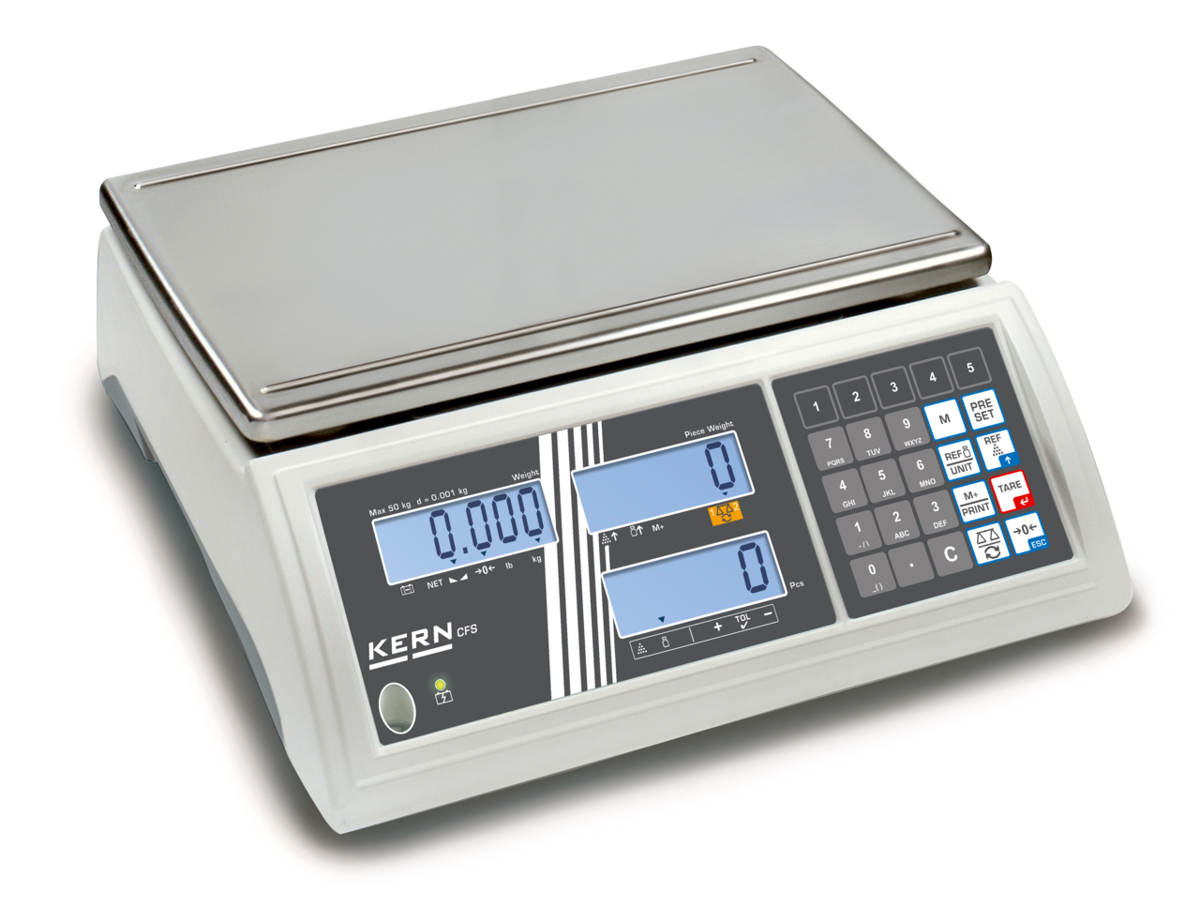

Professional, high-resolution counting scale with 100 item memory slots and secondary scale interface, counting resolution of 300,000 points
- Precise, intuitive to use, and digital – our counting scales speed up your annual inventory processes, saving you time and costs
- Memory (PLU) for 100 items with additional text, reference weight, and tare weight, e.g., for a container
- Accurate counting: automatic reference optimization gradually improves the average piece weight
- Programmable via keypad:
- - desired reference quantity
- - known reference weight
- Three displays for weight, reference weight, and total quantity
- Weighing with tolerance range (checkweighing): an optical and audible signal assists with portioning, dosing, or sorting
- Fill-to-target function: target quantity or target weight programmable, e.g., for checkweighing. Reaching the target value is indicated by a signal
- PRE-TARE function for manually deducting a known container weight in advance, useful for volume control
- Secondary scale interface for standard setup of a high-resolution counting system, e.g., with KERN KFP V20 load cells

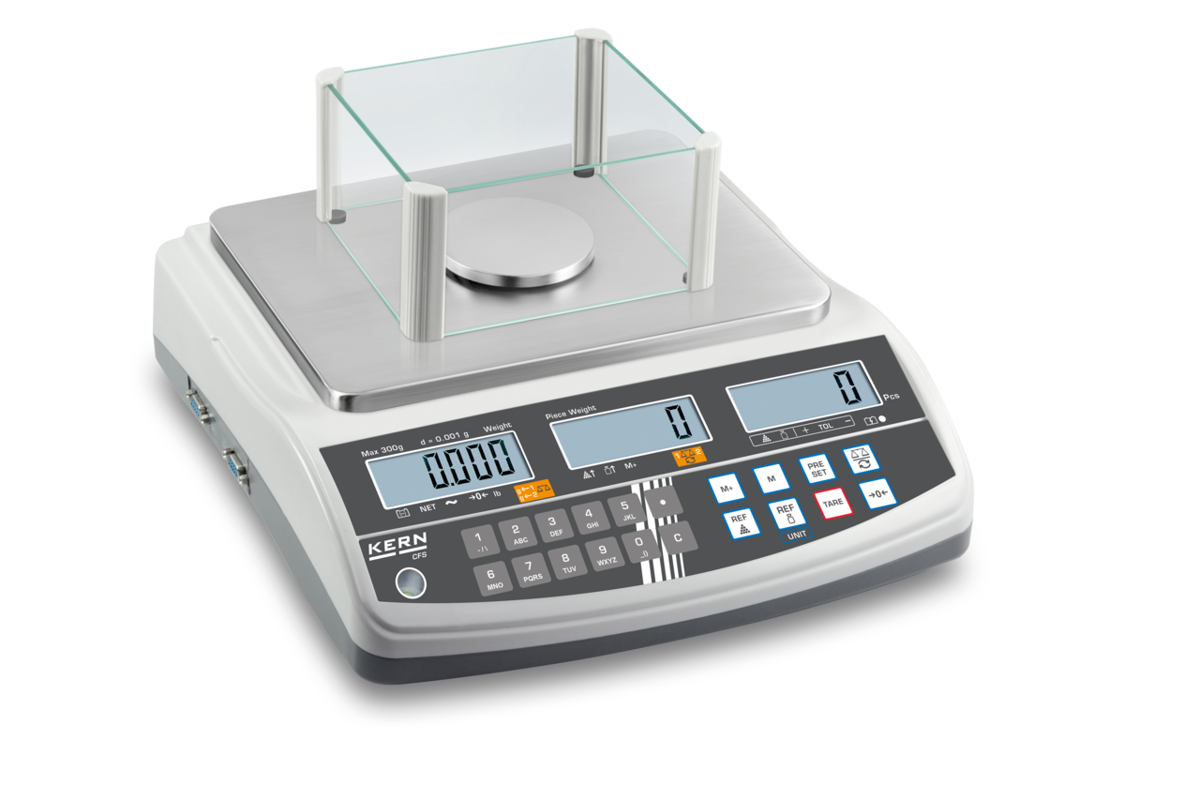

- Windshield included as standard, weighing chamber W×D×H 155×141×80 mm
- Safety hood included in the delivery scope
Model overview (6 versions)
| Item number | Weighing range | Readability | Weighing area (d) | Platform size | Weighing plate dimensions (W×D) | Gross weight | Calibration |
|---|---|---|---|---|---|---|---|
| CFS 300-3 | 300 g | 0.001 g | 80 mm | 80 mm | – | 6 kg | – |
| CFS 3K-5 | 3,000 g | 0.01 g | 295×225 mm | 295×225 mm | 295×225 mm | 4.4 kg | – |
| CFS 6K0.1 | 6 kg | 0.0001 kg | 295×225 mm | 295×225 mm | 295×225 mm | 4.4 kg | – |
| CFS 15K0.2 | 15 kg | 0.0002 kg | 295×225 mm | 295×225 mm | 295×225 mm | 4.6 kg | – |
| CFS 30K0.5 | 30 kg | 0.0005 kg | 295×225 mm | 295×225 mm | 295×225 mm | 4.4 kg | – |
| CFS 50K-3 | 50 kg | 0.001 kg | 370×240 mm | 370×240 mm | 370×240 mm | 6 kg | – |
Technical data (all versions)
| IP protection of load cell | IP65 |
| Housing material | Plastic |
| Spirit level | Yes |
| Swivel screw feet | Yes |
| Device dimensions (W×D×H) | 320×350×125 mm |
| Display height | 20 mm |
| Backlight | Yes |

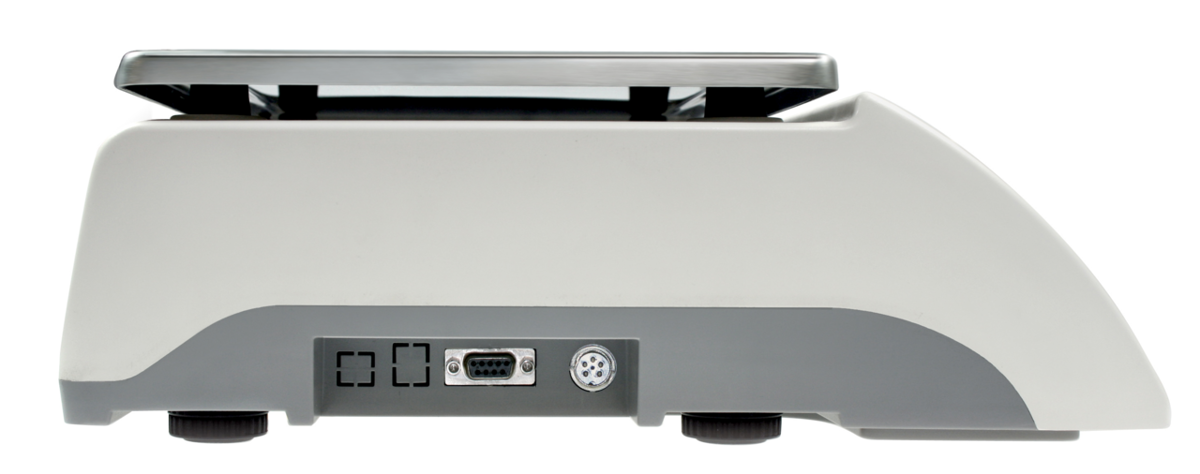

| Interfaces | RS-232 standard, secondary scale interface |
| Power adapter/adapter included | CH, EURO, UK, US |
| Charging time | 14 h |
| Operating time (backlight off) | 70 h |
| Calibration method | Adjustment with external weight |
| Stabilization time under laboratory conditions | 2 s |
| Warm-up time | 120 min |
| Weighing system | Strain gauge |
| Maximum humidity | 80 % |
| Maximum operating temperature | 40 °C |
| Minimum ambient temperature | 0 °C |
| Minimum humidity | 0 % |
| Delivery time from manufacturer | 1 business day(s) |
Download product data sheet (PDF)
DAkkS calibration certificate available optionally – please inquire.
