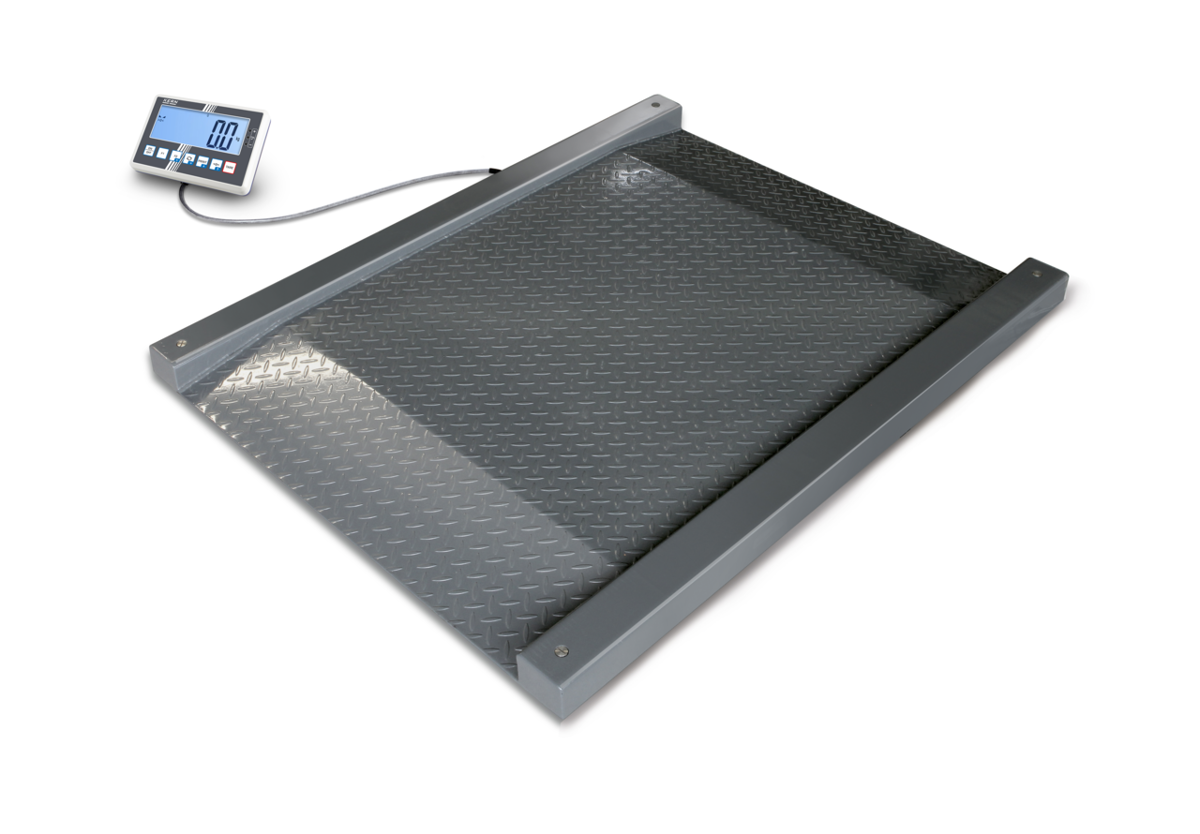

Networkable drive-over scale (IP67), optional with legal-for-trade certification
- Drive-over scale for quickly weighing, e.g., wire cage trolleys, laundry trolleys, pallet trucks, roll containers, waste bins, etc.
- Weighing bridge: made of non-slip steel checker plate, 4 silicone-coated steel load cells, dust and splash-proof to IP67
- Evaluation unit: for details see KERN KERN KFC-TM
- IoT-Line: networkable scale with user-friendly operating concept
- Industry 4.0: data exchange and control commands can be carried out via an interface connectable to the housing or via the KUP Extension Box through three interfaces in parallel; for details see KERN KFC-TM
- With standard real-time clock: enables weighing results to be logged with an accurate time stamp. The scale can continue to operate with the correct time even after a power failure
- Safety cover included in the scope of delivery
Model overview (4 versions)
| Item number | Weighing range | Readability | Weighing area (d) | Platform size | Dimensions of the weighing plate (W×D) | Dimensions of the weighing platform (W×D×H) | Legal-for-trade certification |
|---|---|---|---|---|---|---|---|
| NFC 600K-1LM | 600 kg | 0.2 kg | 1,200×1,200 mm | 1,200×1,200 mm | 1,200×1,200 mm | 1,800×1,420×95 mm | available |
| NFC 600K-1M | 600 kg | 0.2 kg | 1,000×1,000 mm | 1,000×1,000 mm | 1,000×1,000 mm | 1,600×1,220×95 mm | available |
| NFC 1.5T-4LM | 1,500 kg | 0.5 kg | 1,200×1,200 mm | 1,200×1,200 mm | 1,200×1,200 mm | 1,800×1,420×95 mm | available |
| NFC 1.5T-4M | 1,500 kg | 0.5 kg | 1,000×1,000 mm | 1,000×1,000 mm | 1,000×1,000 mm | 1,600×1,220×95 mm | available |
Technical data (all versions)
| Display cable length | 5 m |
| IP protection rating of display | No IP protection |
| IP-protected platform | IP67 |
| IP protection rating of load cell | IP67 |
| Weighing plate material | Steel, powder-coated |
| Spirit level | Yes |
| Swivel screw feet | Yes |
| Dimensions of the display housing (W×D×H) | 220×150×66.5 mm |
| Wall mount | Yes |
| Display height | 48 mm |
| Backlight | Yes |
| Battery | 3V CR2032 |
| Interfaces | Alibi memory (optional, factory), analog (0–10 V) (optional), analog (4–20 mA) (optional), Bluetooth BLE (v4.0) (optional), Ethernet (optional), KUP, RS-232 (optional), USB device (optional), WLAN (optional) |
| Power adapter/adapter included | CH, EURO, UK, US |
| Charging time | 8 h |
| Input voltage | 100 V–240 V, 50/60 Hz |
| Operating time (backlight off) | 22 h |
| Rechargeable battery | Rechargeable battery optional – internal |
| Calibration method | Adjustment with external weight |
| Stabilization time under laboratory conditions | 3 s |
| Warm-up time | 10 min |
| Weighing system | Strain gauge |
| Weighing units | %, ffa, g, kg, PCS |
| Resolution | 3,000 |
| Linearity (in points) | 2 |
| Load cell connection | 6-wire |
| Maximum humidity | 80% |
| Maximum operating temperature | 40 °C |
| Minimum ambient temperature | -10 °C |
| Minimum humidity | 0% |
| Warranty (months) | 36 |
| Delivery time from manufacturer | 3 business day(s) |
Download product data sheet (PDF)
DAkkS certificate of calibration optionally available – please inquire.
