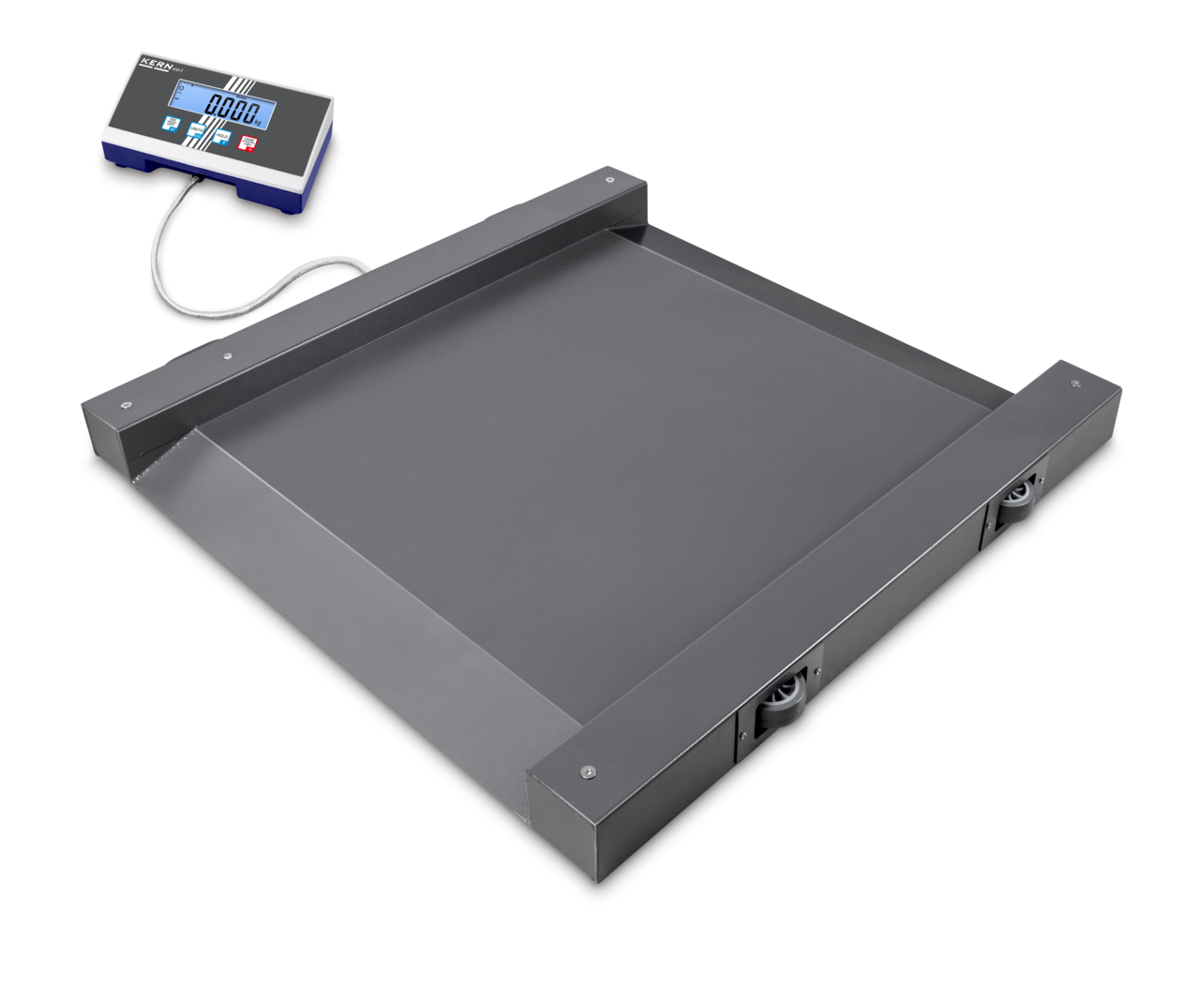

Compact and robust through-beam scale – highly mobile thanks to handle, casters and lightweight design
- Through-beam scales enable the precise weighing of goods during a production process without the need for unloading. This allows the weighing process to be perfectly integrated into the workflow without any significant loss of time. Ideal for quickly weighing, e.g. wire cage trolleys, laundry trolleys, multi-tier trolleys, container trolleys, magazine trolleys, transport trolleys, transport cases, pallet trucks, roll containers, waste bins, etc.
- Low platform height and integrated ramps on both sides make it easy to drive onto
- Weighing bridge: steel, powder-coated, 4 silicone-coated aluminum load cells, IP67 dust and splash-proof

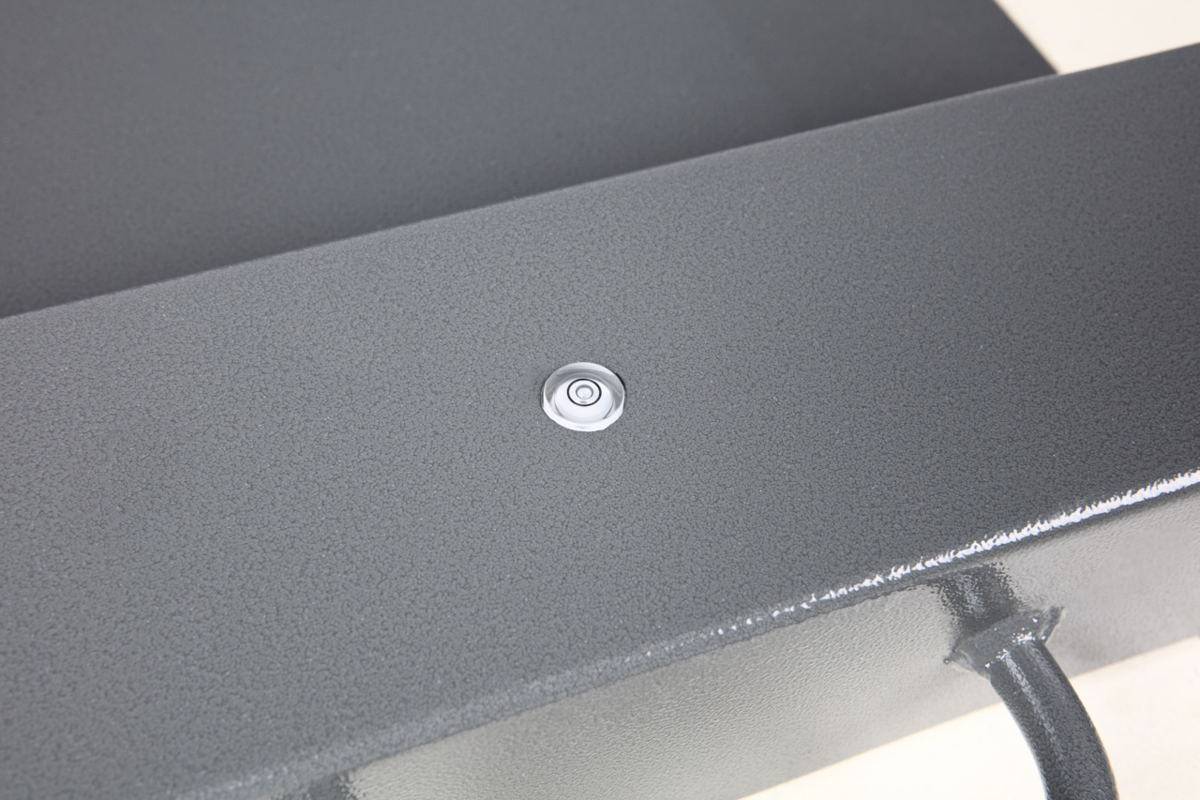

- Spirit level for precise leveling of the scale included as standard

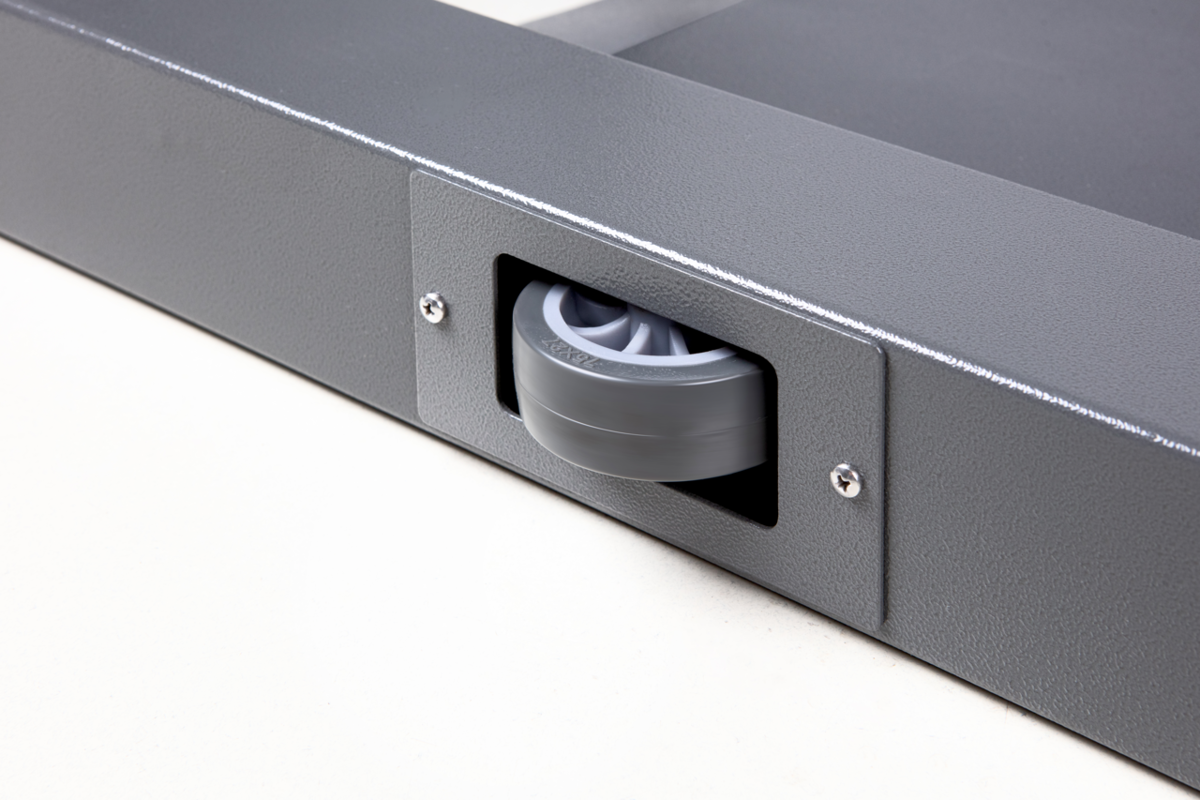

- The scale can be conveniently transported using the casters and handle and stored compactly
- Wall bracket for wall mounting the display unit included as standard, only for models without a stand
- Safety hood included
Model overview (2 versions)
| Item number | Weighing range | Readability | Legal for trade |
|---|---|---|---|
| NIB 300K-1 | 300 kg | 0.1 kg | – |
| NIB 600K-2 | 600 kg | 0.2 kg | – |
Technical data (all versions)
| Platform size | 800×800 mm |
| Display cable length | 5 m |
| Weighing platform dimensions (W×D×H) | 1,000×1,000×40 mm |
| Display IP protection | No IP protection |
| Platform IP protection | IP67 |
| Load cell IP protection | IP67 |
| Weighing plate material | Steel, powder-coated |
| Weighing area (d) | 800×800 mm |
| Spirit level | Yes |
| Swivel screw feet | Yes |
| Weighing plate dimensions (W×D) | 800×800 mm |
| Display housing dimensions (W×D×H) | 235×114×51 mm |
| Wall bracket | Yes |
| Display height | 25 mm |
| Battery | 4×1.5 V AA |
| Operating time | 60 h |
| Mains adapter/adapter included | AUS, CH, EURO, UK, US |
| Input voltage | 100 V - 240V AC 50/60Hz 0.3A |
| Calibration method | Adjustment with external weight |
| Recommended adjustment weight | 300 kg (M1) |
| Warm-up time | 10 min |
| Weighing system | Strain gauge |
| Weighing units | Kg, lb |
| Resolution | 3,000 |
| Load cell connection | 4-wire |
| Maximum humidity | 80 % |
| Maximum operating temperature | 40 °C |
| Minimum ambient temperature | -10 °C |
| Minimum humidity | 5 % |
| Gross weight | 65 kg |
| Net weight | 40 kg |
| Warranty (months) | 36 |
| Delivery time from manufacturer | 3 working day(s) |
Download product data sheet (PDF)
DAkkS certificate of conformity available as an option – please enquire.
