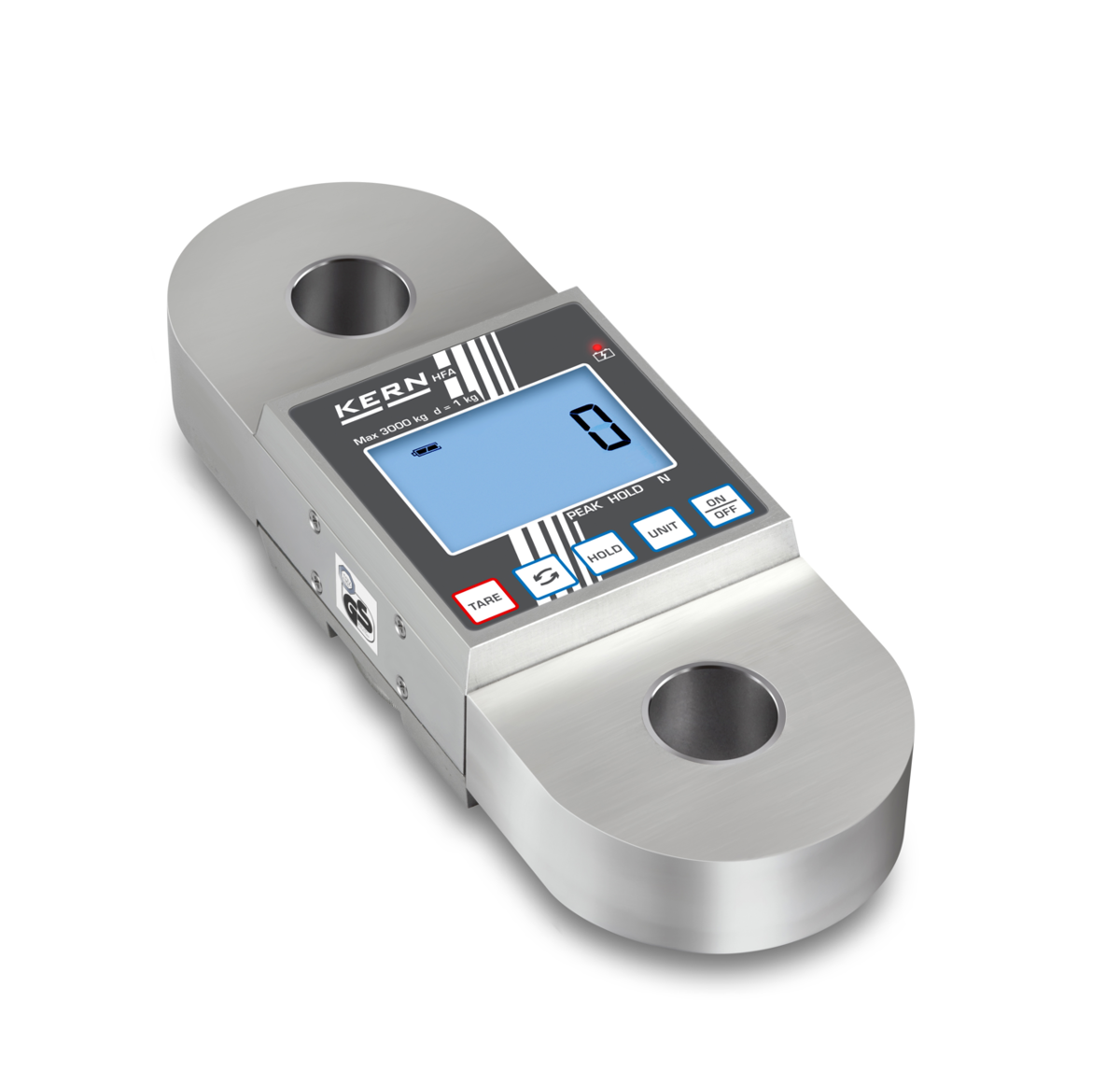

Compact crane scale with integrated display, also suitable for measuring tensile force
- The scale bears the TÜV test mark and complies with the requirements of the following standards: EN 13155 (loose load measuring devices/break-load safety) and EN 61010-1 (electrical safety)
- The high-quality workmanship, low self-weight and compact dimensions make this crane scale (tensile force measuring device) an indispensable measuring device in industry, on construction sites, in freight centers, port facilities, etc.
- The compact design also makes it well suited for space-saving installation in systems, etc.
- Ideally suited for quick weight determination during loading and unloading
- Peak load display (Peak-Hold)
- Hold function: For easy reading of the weight value, the display can be “frozen” by pressing the Hold button
- Taring: Resets the display to “0” while the scale is loaded. Removed or added loads are now displayed directly
Model overview (5 versions)
| Item number | Weighing range | Readability | Gross weight | Legal for trade |
|---|---|---|---|---|
| HFA 600K-1 | 600 kg | 0.2 kg | 3.0 kg | – |
| HFA 1T-4 | 1,000 kg | 0.5 kg | 2.8 kg | – |
| HFA 3T-3 | 3,000 kg | 1 kg | 3.0 kg | – |
| HFA 5T-3 | 5,000 kg | 2 kg | 5.0 kg | – |
| HFA 10T-3 | 10,000 kg | 5 kg | 7 kg | – |
Technical data (all versions)

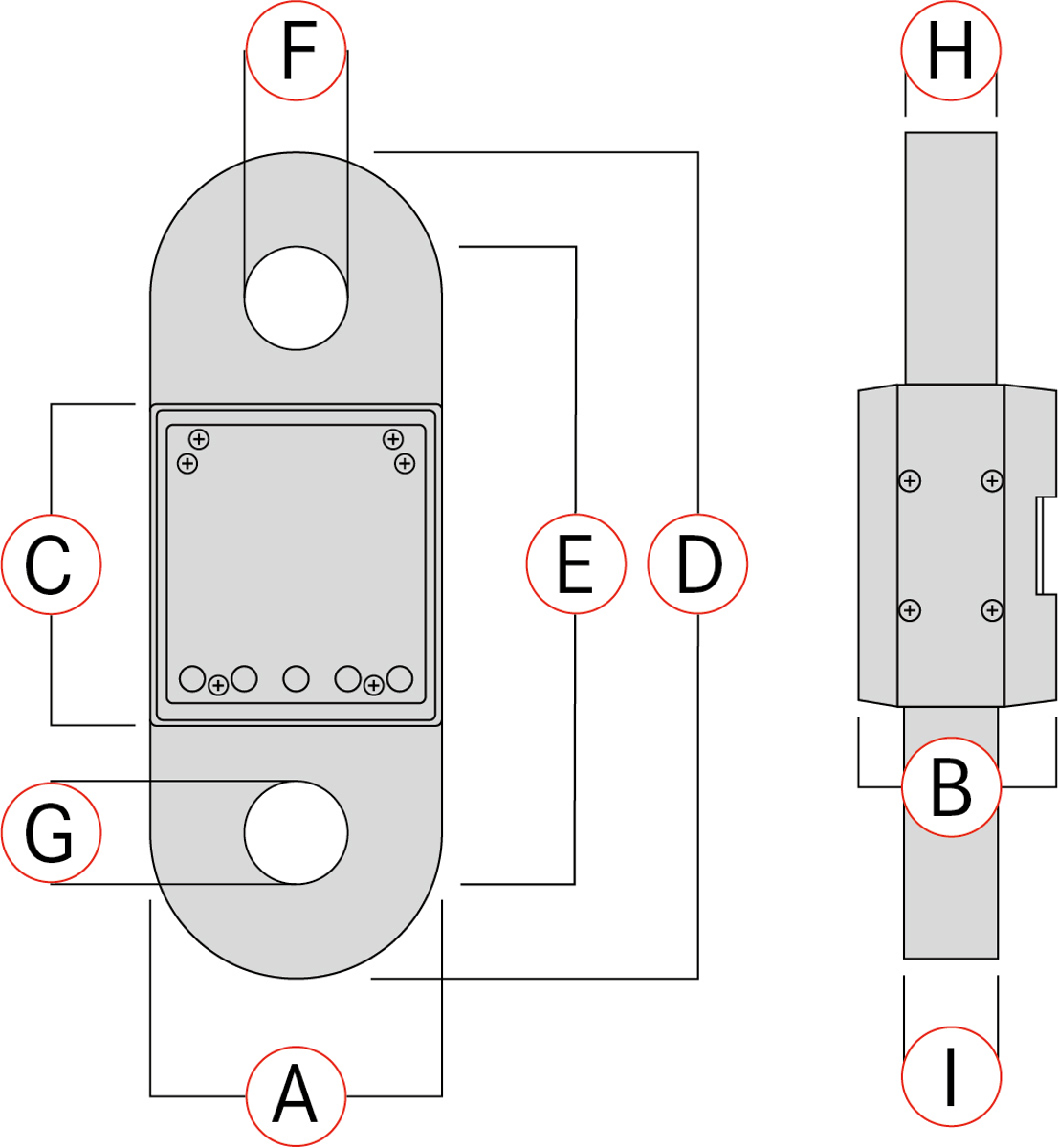

| Suspended scale (A) | 90 mm |
| Suspended scale (C) | 100 mm |
| Internal measuring frequency | 60 Hz |
| TÜV (TECHNISCHER ÜBERWACHUNGSVEREIN) | Yes |
| Display height | 23 mm |
| Backlight | Yes |
| Battery | 3×1.5 V AA |
| Operating time | 30 h |
| Power adapter/adapter included | EURO, UK, US |
| Charging time | 12 h |
| Input voltage | 100 V - 240 V, 50 / 60 Hz |
| Operating time (backlight off) | 30 h |
| Calibration method | Adjustment with external weight |
| Warm-up time | 10 min |
| Weighing units | Kg, lb, N |
| Maximum humidity | 80 % |
| Maximum operating temperature | 35 °C |
| Minimum ambient temperature | 5 °C |
| Warranty (months) | 36 |
| Delivery time from manufacturer | 1 business day(s) |
Download product data sheet (PDF)
DAkkS calibration certificate optionally available – please inquire.
