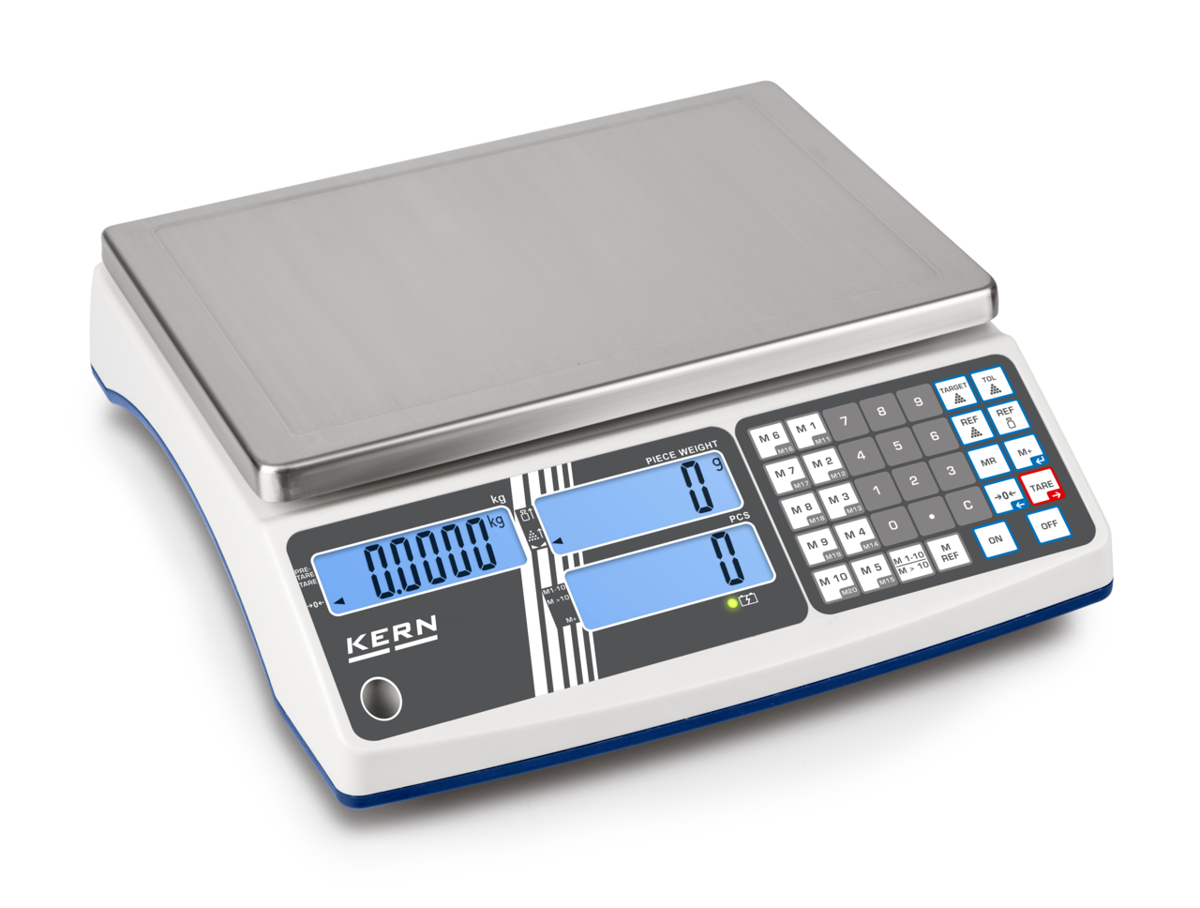

Robust counting scale with large item memory, user-friendly operation, checkweighing display, 30,000-point counting resolution
- Precise, intuitive to operate, and digital – our counting scales speed up your annual inventory processes, saving you time and costs
- The counting process can be supported visually and/or acoustically, making portioning, dosing, and sorting easier

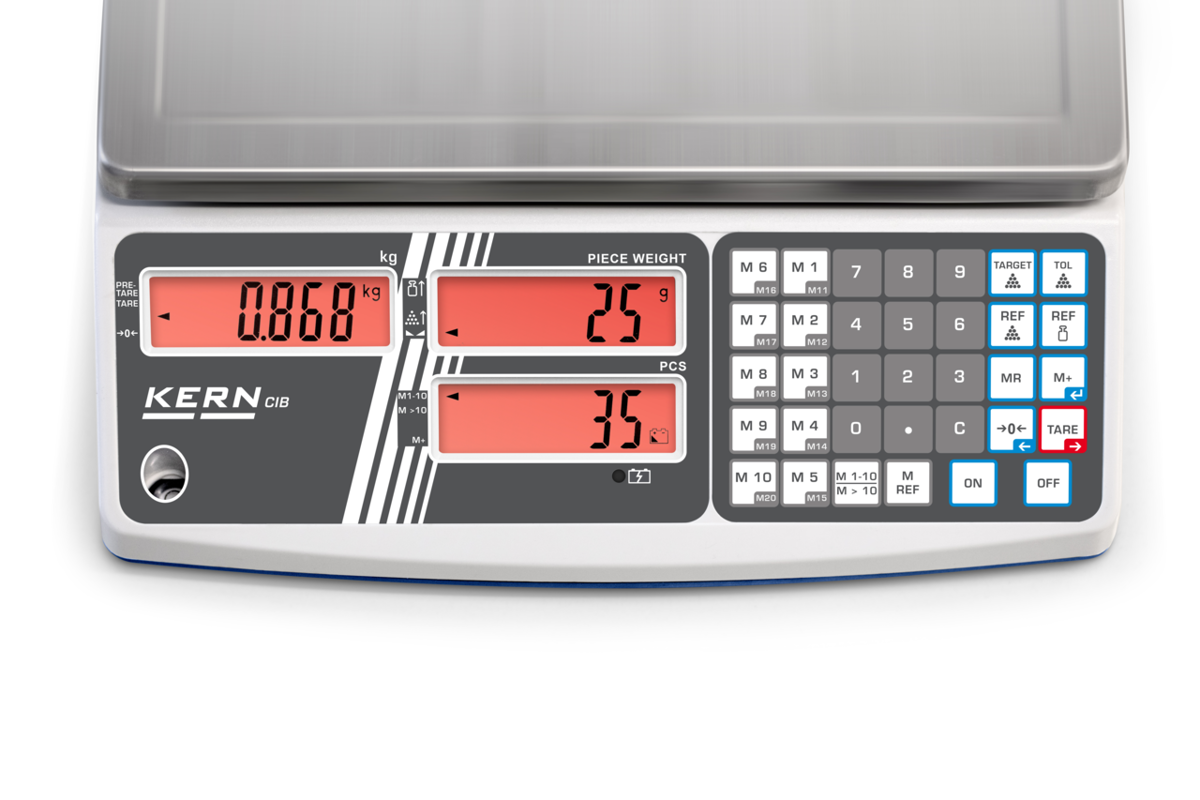

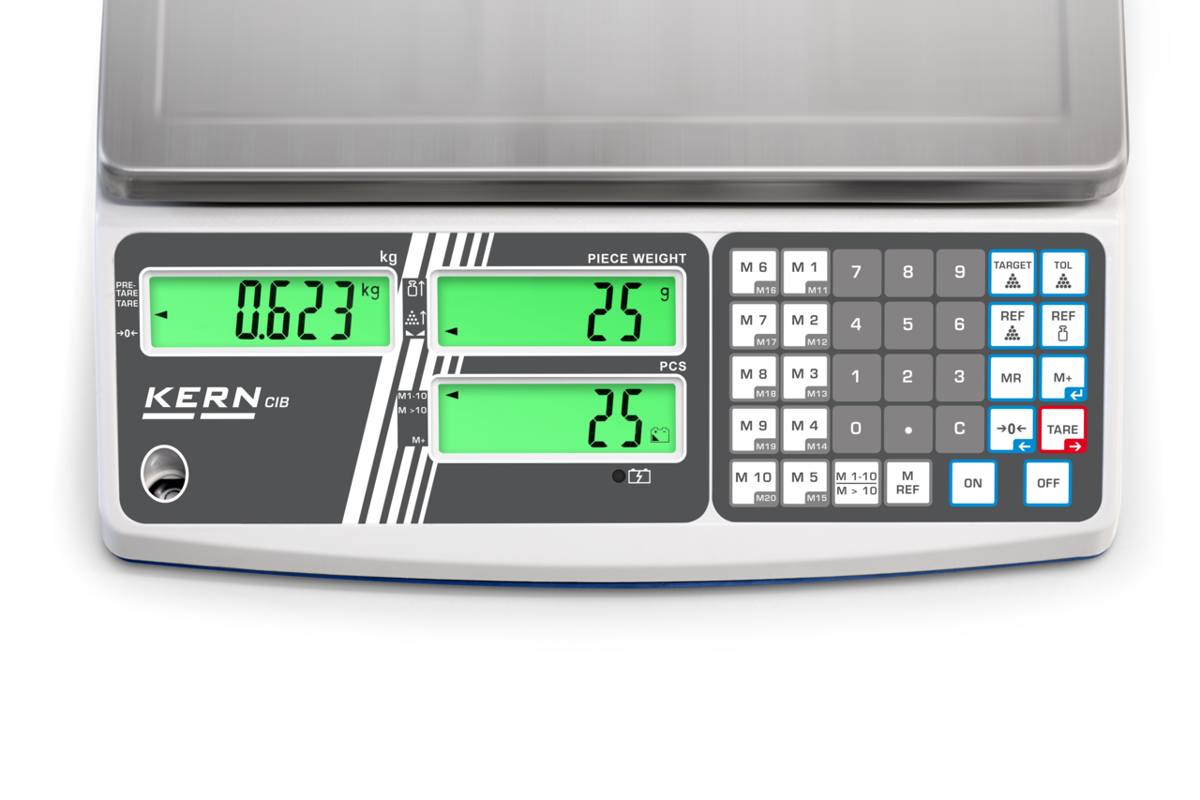

- - visual signal: the display color changes depending on the counting result (too little/ok/too much)
- - acoustic signal: the frequency of the acoustic signal changes depending on the counting result (too little/ok/too much)
- Ideal for workshops for people with disabilities, particularly loud or quiet environments, frequently changing operators, etc.

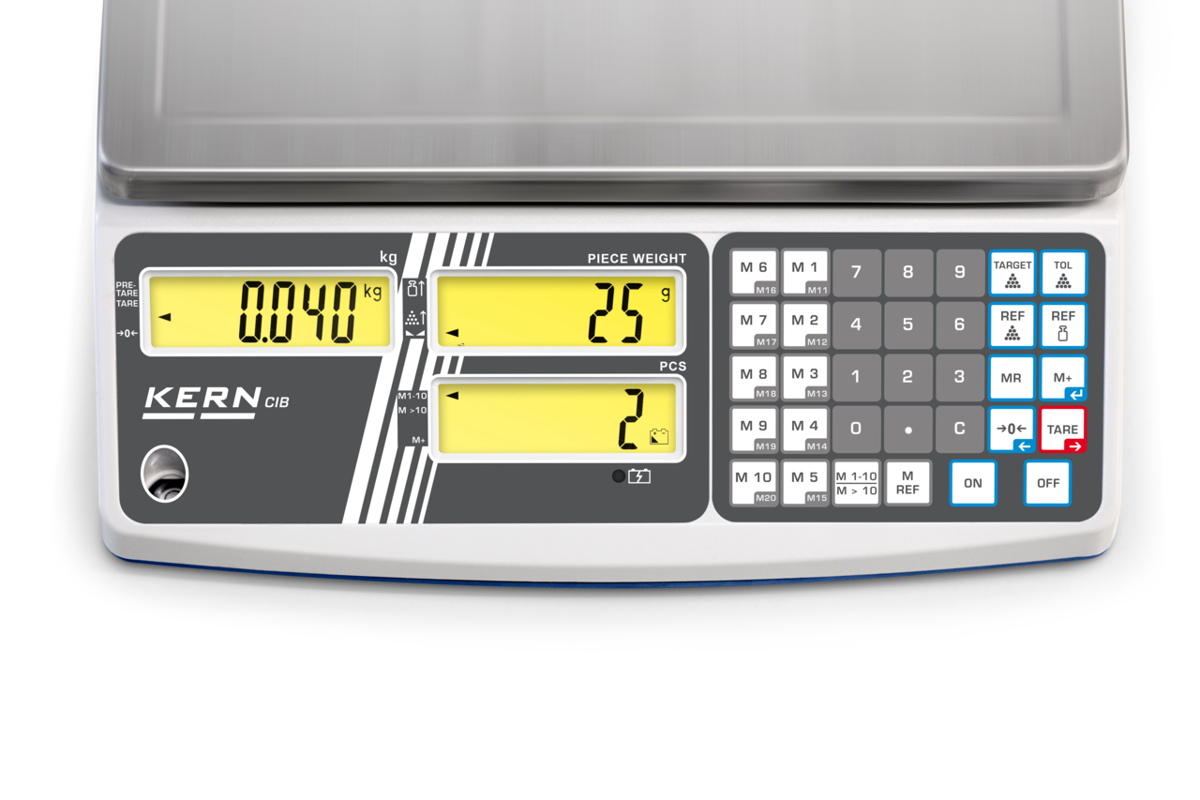

- Three displays for weight display, reference weight, and total piece count
- Accurate counting: automatic reference optimization gradually improves the average piece weight
- Programmable via keypad:
- - desired reference piece count
- - known reference weight
- Cumulative total memory: for summing up identical counted items into total pieces and total weight
- PRE-TARE function for manually deducting a known container weight in advance, useful for volume control
- 20 freely assignable direct keys for frequently used reference weights and PRE-TARE values
- Memory for 50 reference weights and PRE-TARE values
- Highly portable: thanks to battery operation and a compact, lightweight design, suitable for use at multiple locations
- Two scales in one: switch from counting mode to weighing mode at the touch of a button
- Power management: backlight turns off after 5 sec, switchable
- Protective cover included
Model overview (4 versions)
| Item number | Weighing range | Readability | Gross weight | Calibration |
|---|---|---|---|---|
| CIB 3K-4 | 3 kg | 0.0002 kg | 4.2 kg | – |
| CIB 6K-4 | 6 kg | 0.0005 kg | 4.4 kg | – |
| CIB 10K-3 | 15 kg | 0.001 kg | 6 kg | – |
| CIB 30K-3 | 30 kg | 0.002 kg | 4.4 kg | – |
Technical data (all versions)
| Platform size | 315×215 mm |
| IP protection load cell | IP65 |
| Housing material | Plastic |
| Housing dimensions (W×D×H) | 350×330×120 mm |
| Weighing plate material | Stainless steel |
| Weighing area (d) | 315×215 mm |
| Spirit level | Yes |
| Swivel screw feet | Yes |
| Weighing plate dimensions (W×D) | 315×215 mm |
| Display height | 18 mm |
| Backlight | Blue, yellow, green, red |
| Power adapter/adapter included | CH, EURO, UK |
| Charging time | 14 h |
| Input voltage | 100V-240V AC 50/60Hz 0.4 Amax |
| Operating time (backlight off) | 160 h |
| Calibration method | Adjustment with external weight |
| Stabilization time under laboratory conditions | 2 s |
| Warm-up time | 30 min |
| Weighing system | Strain gauge |
| Weighing units | Kg |
| Maximum humidity | 85 % |
| Maximum operating temperature | 40 °C |
| Minimum ambient temperature | -10 °C |
| Minimum humidity | 15 % |
| Warranty (months) | 24 |
| Delivery time from manufacturer | 1 business day(s) |
Download product data sheet (PDF)
DAkkS calibration certificate optionally available – please inquire.
